鋁蜂窩板主要應用于大厦的外牆裝飾

这是一種豪华富麗的裝飾材料，其面板主要選用優質的3003H24合金鋁板5052AH14高錳合金鋁板为基材，面板厚度为0.8~1.5mm氟碳滾塗板，底板厚度为0.6~1.0mm，總厚度为10mm~25mm为宜。芯材采用六角形3003型鋁蜂窩芯，鋁箔厚度0.04~0.06mm，邊长5~6mm，采用高分子胶膜和改性环氧，全封閉無塵作業，用全自動蜂窩板複合生産設備通过加压高温複合而成，克服了以往蜂窩板粘接层的脆性問題。使鋁蜂窩板在潮湿、高温的情況下，都不会發生變化，屬一種高質量、輕質、高强度外表豪华富麗的綠色环保裝飾材料。

使用傳統的热压機複合，每次压蜂窩板數件不多，影響工作效率，另在取下蜂窩板时，蜂窩板的温度突然下降，使蜂窩板很容易彎曲、變形，影響蜂窩板質量。本公司采用先進的全自動蜂窩板複合生産線，生産效率高，温度穩定，産品複合过程由低温→中温→高温→中温→低温→定型冷卻→下板。設備可連續性複合鋁蜂窩板，使鋁蜂窩板粘接更牢固，更抗彎撓，板块更平直，質量更穩定可靠。

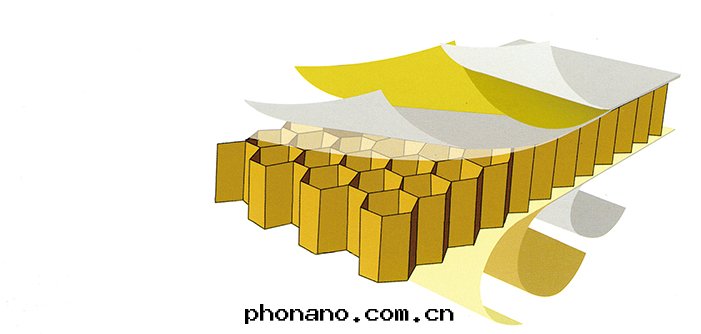

An aluminum honeycomb panel is a kind of ideal decoration material. Excellent 3003H24 alloy aluminum panel or 5052AH14 high manganese alloy aluminum panel is selected for surface panel rolling coated with fluorine carbon, with a thickness of 0.7-1.0mm. The thickness of bottom panel is 0.6-1.0 mm and the total thickness is 10-25 mm. Hexagons 3003H24 aluminum honeycomb core is adopted for core material, with aluminum foil thickness, of 0.04-0.06 mm and border length of 5-6 mm.

比重輕、强度高、剛度大、結构穩定、抗風压好

                 Light specific gravity, high intensity, high rigidity, steady structure and high wind-resistance performance.

鋁蜂窩板以其質輕、强度高、剛度大等諸多優點，已被廣泛應用于大厦外牆裝飾。具有相同剛度的蜂窩夾层板重量僅为鋁板的1/5，鋼板的1/10。總厚度为15mm，面板为1.0mm，底板为0.8mm的鋁蜂窩板，重量只有6公斤/平方米。相互連接的蜂窩芯就如無數个工字鋼，芯层分布固定在整个板面內，不易産生剪切，使板块更加穩定，更抗彎撓和抗压，其抗風压大大超越于鋁塑板和鋁單板，並且有不易變形，平直度好的特點，即使蜂窩板尺寸很大，也能达到极高的平直度。鋁蜂窩板以其最小的重量而达到最大的强度和撓度。並在于出色的剛性重量比，以最小的材料获得最大受力，是其它材料不可比拟的特點，是目前建築業首選的輕質材料。

Aluminum honeycomb panels have been extensively applied to external wall decoration of high-rises. Honeycomb sandwich panels of the same rigidity have a weight that only 1/5 of aluminum panels and 1/10 iron panels. Aluminum honeycomb panels, whose total thickness being 15mm, panels 1.0mm thick and bottom panel 0.8mm think have a weight of only 6 kilos per square meter. The interconnected honeycomb cores are like numerous 1 bars with interface layers distributed within the whole panel, thus resisting shearing and bending and large pressure. It’s wind-resistance performance has greatly exceeded that of aluminum-plastic panels and aluminum single aluminum panels, so that even large-sized honeycomb panels can reach extremely high straightness. Aluminum honeycomb panels can reach the highest intensity and bending resistance with the lightest weight, which is an incomparable material, thus making it currently the preferred light weight material in the building industry.

隔音、隔热、防火、防震功能突出

                 Excellent performance in sound insulation, heat insulation, fireproofing and quakeproof.

由于蜂窩複合板內的蜂窩芯分隔成衆多个封閉小室，阻止了空气流動，使热量和聲波受到极大阻礙，因此，起到隔热、保温、隔音的效果。对100 -3200HZ的聲源隆澡可达20~30dB，導热系數为0.104-0.130W/M.K，因而鋁蜂窩板的能量吸收能力为150-3500KJ/M2是一種理想的节能材料。如遇下大雨时，雨點打在鋁單板或鋁塑板面上时噪聲特别大，而蜂窩板就避免了这種情況。

Since the honeycomb cores in aluminum composite panels are divided into many enclosed cells, which stops air flows and blocks heat and sound waves with 20-30 DB noise reduction for sources from 100HZ to 3200HZ and a heat conduction coefficient of 0.1040.130W/M.K. Aluminum honeycomb panel is an ideal energy saving material with an energy absorption capability of 150-3500KJ/M. For example, when it is raining, rain dropping on the aluminum single aluminum single panels or aluminum-formed panels will make a loud noise, but if replaced them with honeycomb panels, no such problems will occur.

外觀平直、顔色多樣、高雅光潔、經久耐用

                 Flat and straight in vision and diverse in color, elegant and bright.

不同規格尺寸的蜂窩板都具有极高的平整度，並且有不易變形的優點，本公司生産的鋁蜂窩板一般采用氟碳滾塗鋁板做面板。氟碳滾塗鋁板最重要的一點是采用了連續的辊塗工藝，鋁板的塗漆是一次性完成的，保證其産品無色差，塗层流平度好，質量可靠。同时能长时間保持建築物外牆顔色鮮豔。經过长期日晒雨淋或工業废气污染後，很明顯滾塗板要比噴塗板潔淨光亮，並具有良好的附着力和耐候性，是世界建築人士公認的第一流材料。

Aluminum honeycomb panels of different specifications and sizes all have extremely high straightness and have the advantage of not ease to distortion. The panels mainly adopt fluorocarbon coil coating. A critical point for fluorocarbon coil coating aluminum panels is that it employs the technique of continuous coil coating. The coating of aluminum panels is completed at the first time. Therefore, the products with positive quality are free from chromatic aberration, excellently flat in coating, and keep the external wall of buildings brightly-colored over a long period of time. After a long time be exposed to the sun and rain or polluted by the industrial waste gas, obviously you can find the roller coating aluminum panels are brighter than the spraying coating aluminum panels, which has good adhesive force and climate-resistance. So the roller coating aluminum panels are recognized as the first-class construction materials by the world architects.

裝飾性强，安裝方便、快捷

                 Find decoration effect, easy and rapid installation.

蜂窩板的双面板可根据不同的要求選用不同材料，如鋁板、不鏽鋼板、彩鋼板、天然石材。幕牆鋁蜂窩板是根据現场設計的尺寸，在工廠加工，四周彎折，然後複合成型，再沖挂耳，挂耳與板块連成一整體，使成形後的蜂窩挂板更加牢固。蜂窩板可做成平板、弧形板和“L”型板，全工廠化生産，質量可靠、安裝方便、快捷。

The bottom panels of honeycomb panels can adopt different materials according to different requirements, such as aluminum panels, corrosion resistant panels, colored steel panels and natural stones. The aluminum honeycomb panels are processed in factories according to sizes designed in site. The surroundings of the panels are bent and then formed by hybrid forming. The suspension loops are punched and made into a whole with the panel which makes shaped honeycomb panels firmer. The honeycomb panels can be made into flat panels, panels of arc type and L type and U type through the full factory run with positive quality and easy installation.
